Description
MrCool’s 9000 BTU/H Advantage series mini split system is rated for 208V/230V installation, uses R410A chlorine-free refrigerant and comes with a 16-ft install kit.

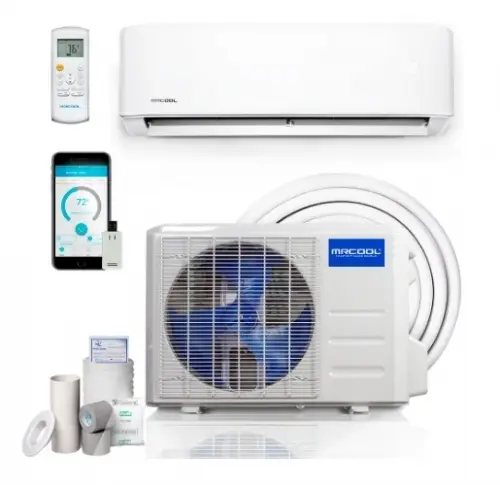

he MRCOOL A-09-HP-C-230C Advantage Series is a ductless mini-split heat pump system ideal for wall mounting. This unit offers both heating and cooling, making it versatile for year-round use. The system includes a wall mount air handler, an outdoor condenser with gold fin coating for durability, and a sixteen-foot lineset for installation flexibility.
- Includes wall mount air handler, outdoor condenser, and sixteen-foot lineset.
- Features SmartHVAC for remote control and programming.
- Gold fin condenser offers corrosion resistance.
Product Highlights
This ductless mini-split system provides efficient heating and cooling for spaces up to three hundred seventy-five square feet, with a power output of nine thousand BTU. The SmartHVAC feature allows for control via smartphone or virtual assistant, enhancing convenience.
Product Information
Standard Information
- Brand: MRCOOL
- MPN: A-09-HP-C-230C
Technical Specifications
- Voltage: 208 – 230 Volts
- HSPF Rating: 10
- Coverage Area: 375 Square Feet
- SEER Rating: 21.5
- Total BTU: 9,000 BTU
- Air Handler Width: 28.5 inches
- Air Handler Depth: 7.375 inches
- Air Handler Height: 11.375 inches
- Condenser Width: 30.25 inches
- Condenser Depth: 11.75 inches
- Condenser Height: 21.875 inches
Product Specifications
| Part Number | A-09-HP-230C |
| Certificate | cETLus Listed, CSA US, cUL/UL Listed, Prop65 |
| Cooling Capacity | 9000 BTU/H |
| Electrical Phase | 1 Ph |
| Fan Speeds | 3-Speed |
| Heating Capacity | 12000 BTU/H |
| Highest Decibel Rating | 40.5 dB-A |
| Maximum Amperage | 15 Amp |
| Maximum Voltage | 208V/230V |
| Refrigerant | R-410A |
| Room Size | 375 Sq Ft |
| SEER | 21.5 |
| Suction Line | 3/8 |
| Warranty | 1 Yr |
| Product Dimensions | 28.43-in X 11.42-in X 7.36-in |
| Weight | 72.09-lb |
| UPC | 840255521765 |
